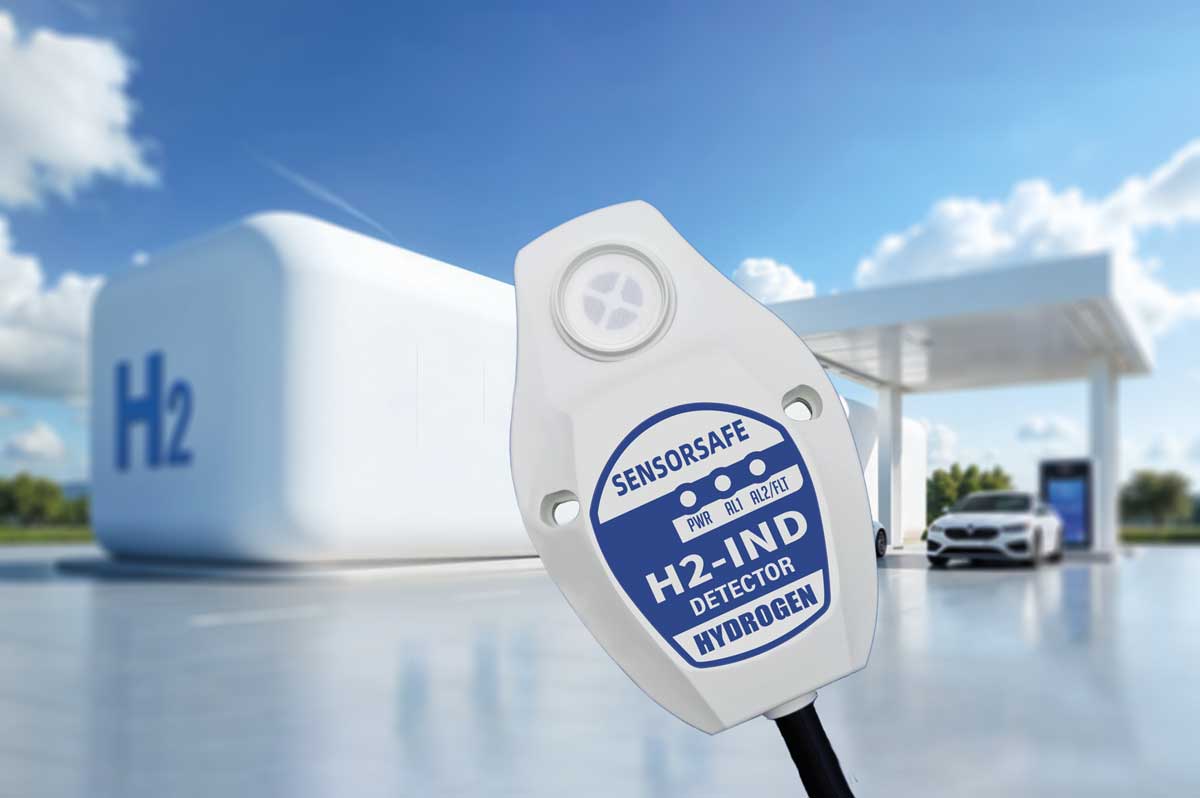

H2 Industrial Detector
The H2-IND is a cost effective, long life H2 gas detector, based on GVZ Components MLD gas detector, with MPS technology inside, that reduces maintenance needs and allows the customer to have highly reliable product with the latest technology.
H2-IND combines the Molecular Property Spectrometry technology with a specific electronic to provide Modbus, analog 4-20mA and a voltage output.
Suggested Applications
- Storage tanks
- Fuel Cells
- Piping
- Hydrogen Distribution
- Battery room
Main Features
- 12VDC or 24VDC versions available
- No field calibration needed
- Immunity to poisoning
- No cross sensitivity
- Gas recognition and selectivity
- Fail Safe (built in diagnostic)
- Long life (+15 years without calibration)
- Wide Temperature working range
- High accuracy with built-in Temperature, humidity and pressure sensors
- T - Rh - P values available as signals
- Multiple digital and analog outputs
- ATEX certified
H2-IND Tech Features |
Values |
|---|---|
Detection Technology | Molecular Property Spectrometry by NevadaNano |
Target Gas | Hydrogen (H2) |
Measurament range | 0-100% LEL |
Accuracy | ±5% LEL |
Response Time (T90) | <20 sec. |
Resolution | 0,1% LEL |
Lifetime | 15+ years |
Signals Output | Gas concentration, Temperature, Humidity, Pressure, Status, Prealarm, Alarm, Fault, Lifetime |
Measurament Output | Modbus | 4-20mA | 0,4-2V | Relays |
Visual Information | 3 x LED (Status, Prealarm, Alarm/Fault) |
Supply Voltage | 12VDC (code H2-IND-12VX) or 24VDC (code H2-IND-24V) |
Power Consumption | Avg. 50mA - Peak: 60mA (12VDC) | 80mA (24VDC) |
Operating Temperature | -40° to +70°C for 12VDC version | -40° to +60°C for 24VDC version |
Operating Humidity | 0 - 100% RH |
Operating Pressure | 80 to 120 kPa |
Protection grade | IP65 |
Dimensions | 13 x 8 x 2,5 cm |
Certifications & Approvals | CE, EMC, Rohs, ATEX II 3G Ex ic IIC T3 Gc according to EN60079-0 and EN60079-11. |
MPS Technology inside
The Molecular Property Spectrometer™ (MPS™) Sensors transducer is a micro-machined membrane with an embedded Joule heater and resistance thermometer.
Certifications
ATEX II 3G Ex ic IIC T3 Gc according to EN60079-0 and EN60079-11
Long life
H2-IND detector has been designed to last for over 15 years without service or recalibration.
